PRODUCT INFO

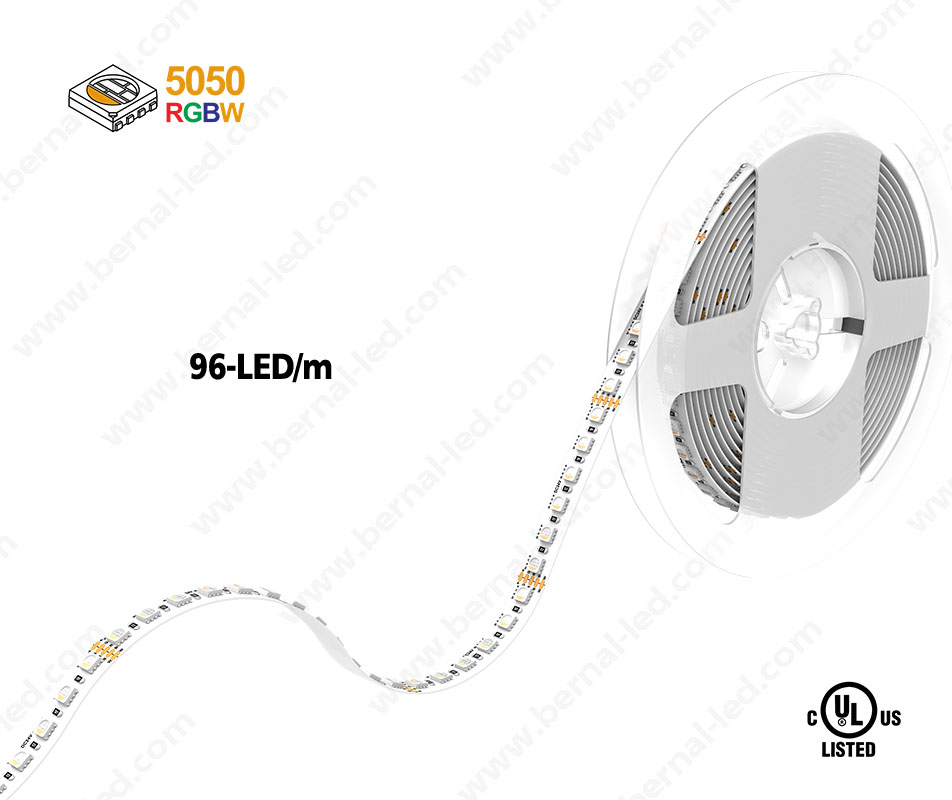

  • BFRGBW096 - 96LEDs/meter 12mm

BFRGBW096 - 96LEDs/meter 12mm

      Normal Voltage 24V DC
      Normal Current per meter 1.0A/m
      Rated Wattage per meter 24W/m
      Type of Current Direct Current / Constant Voltage
      LED Color RGB+W 6500K/4000K/3000K/2700K
      Length per Smallest Cutting Unit 62.5mm
      LED Number per Smallest Cutting Unit
6LEDs
      Length per Roll for Package 5meters / 10meters / 20meters / 50meters
      Width of Printed Cirtuit Board 12mm
      Dimmable PWM / DMX
      Type of Protection
IP20 / IP54 / IP65 / IP67








What brand of led do we use for our products?




PCB Structure

All our PCB (Printed Circuit Board) have two copper circuit layers. There are 3 kinds of different PCBs for option.



PCB Type
   2oZ
   3oZ
    4oZ
Thickness of copper layer 1
35um
35um
35um
Thickness of copper layer 2
35um
70um
105um








Color Rendering Index (CRI)





CRI means color rending index. More the value is, it will make the subject more natural and free. Using in high CRI led makes the subject outstanding in color and features of materials, perfectly reflecting the colors of subject and the human beings. It is an ideal lighting solution for shops and social activities places etc.

Ra is the average from R1 to R8, We should not only take attention on average Ra but also on the situation red special R9 and the average Ra(9-12) of red, yellow, green, blue when design high CRI LED Studies have found that there is gap between the RA and the visual evaluation for the color of the white LED. The color of the white LED with the lower Ra maybe looks beautiful, however the color of the white LED with the higher Ra maybe looks ugly. It can bed ensured the high CRI of white LED when Ra and R9 both on high value.

R9 refers to a saturated red, with wavelength of 650nm. When the R9<0, the red light is not enough, the red serious distortion, so the lamp can not render in the red color naturally. The number more bigger the conductibility of red is more better. All in all, the R9 more big, the effect on irradiation in fruit and flowers more better, they are more bright-colored. Specially, the product is used for commercial lighting, the R9 can not be negative.


WATERPROOF TYPE


IP Rating Description

IP20   Uncoated
IP54  Spraying thin silicon glue, no led color shift
IP65  Silicon glue coating
IP67  Silicon tube, no led color shift
IP68 Silicon tube injected silicon glue, Anti-UV, coating never change color
