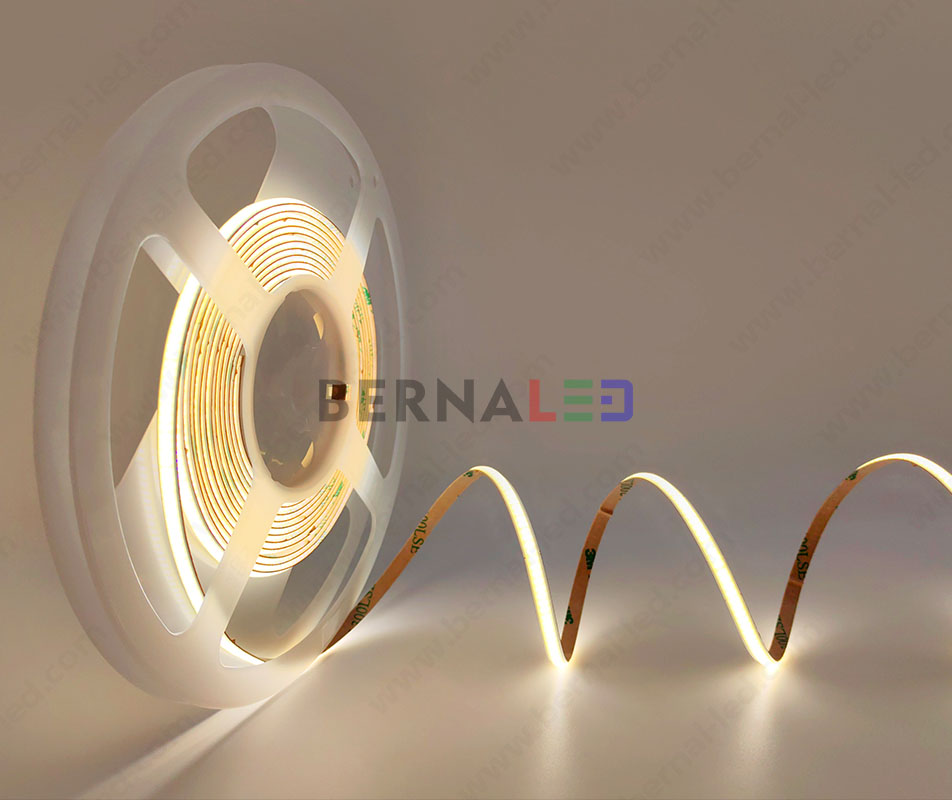

COB LED STRIP

COB LED STRIP

PRODUCT INFO

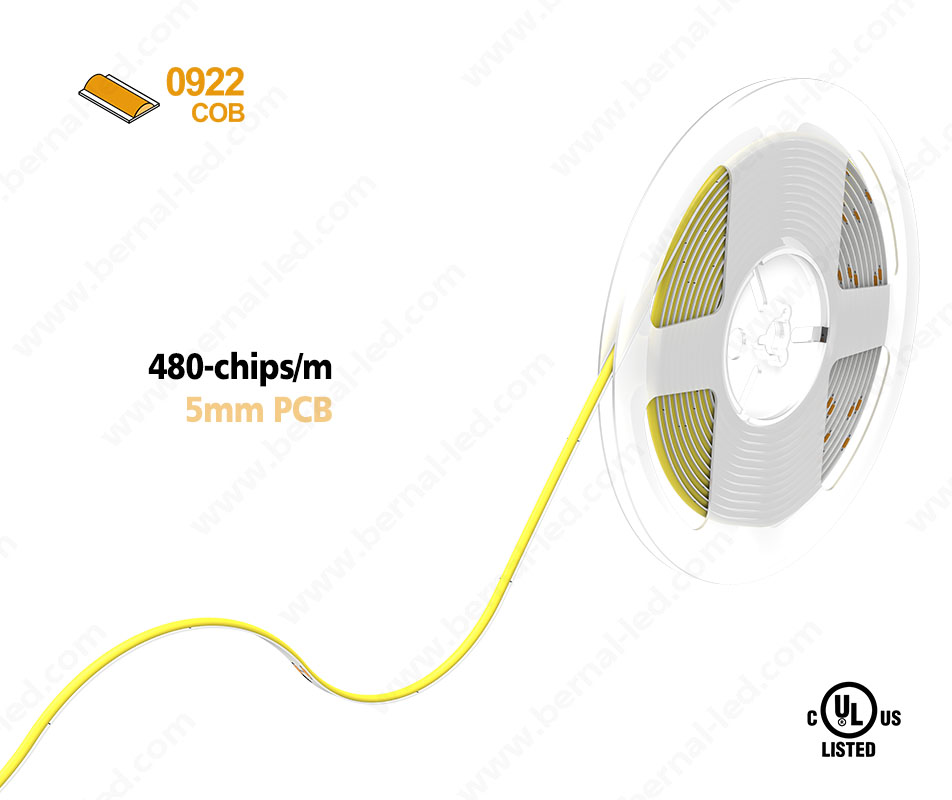

  • BF0922480 - 480Chips/meter 5mm
  • BF0922480 - 480Chips/meter 5mm
  • BF0922480 - 480Chips/meter 5mm
  • BF0922480 - 480Chips/meter 5mm

BF0922480 - 480Chips/meter 5mm

      Normal Voltage 12V DC / 24V DC
      Normal Current per meter 0.6A/m (12V DC) / 0.23A/m (24V DC)
      Rated Wattage per meter 7.2W/m
      Type of Current Direct Current / Constant Voltage
      LED Color 6500K, 4000K, 3000K, 2700K

Red, Green, Blue
      Luminous Flux per meter 525lm
      Luminous Efficacy 73lm/W
       Color Rendering Index / RA RA>90
      Length per Smallest Cutting Unit 50mm
      LED Number per Smallest Cutting Unit
24Chips
      Length per Roll for Package 5meters / 10meters / 20meters / 50meters
      Width of Printed Cirtuit Board 5mm
      Dimmable PWM / DALI / DMX / 0-10V
      Type of Protection
IP20 / IP67
